5 Axle Low Loader
Gürleşenyıl 5 Axle Low Loader: Maximum Capacity for Heavy Infrastructure Projects
Engineered for extreme performance, the Gürleşenyıl 5 Axle Low Loader is designed to carry the heaviest industrial equipment and construction machinery. With five high-capacity axles, it provides exceptional load distribution and stability for the most challenging oversized transports.
Strategic Advantages:
- Ultra-High Payload: Optimized for transporting massive excavators, industrial transformers, and large-scale components.
- Enhanced Stability: Five-axle configuration ensures superior weight distribution, protecting both the cargo and the road.
- Durable Construction: Manufactured using high-strength steel to withstand the immense pressure of concentrated loads.
- Custom Engineering: Available with hydraulic steering and various ramp designs to meet international project requirements.
Built for the Toughest Loads. Engineered for Global Success.
Semi Low Loader Trailer Technical Properties:
Capacity
- 65.000 Kg
Type
- (GTY5) -5 axle Semi Low Loader Trailer (Step Frame, Pool or Flat platform semi low loader trailer)
(Option: Extendable semi-trailer)
Weight
- 13.250 Kg - 18.000 Kg
Axle Unit
- 5 Units
(Options: self-rotary or hydraulic steering axles groups)
Tire Unit And Dimension
- It is produce according to capacity or design. It is 20 units. 235/75 R 17,5", 295/60 R 22.5" or 12 R 22.5"
Semi Low Loader Trailer Chassis
- Semi Low Loader Trailer has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage.
Axles
- It is according 17.5 rim and 5x12 tons, it is according 5x14 ton capacity 22.5 rims will be air suspension.
(Option: Hydraulic suspension. This option is taken with hydraulic steering axles)
Brake
- Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, EBS, WABCO is brand.
5 Axle Low-Loader Semi-Trailer Dimensions:
Platform Lenght
- 9500 mm - 12500 mm.
Varies depending on intended usage.
(Option: Extension 5000 mm - 9000 mm)
Total Lenght
- 13500 mm - 17000 mm varies according to demand
Width
- As air suspension 2500 mm with 3300 mm varies according to demand.
Low Loader Platform Height
- Varies according to demand, Pool height 500 mm with 1000 mm, Platform type height 920 mm is between 1050 mm (Max)
Electric Installation
- The used Installation materials conform to the EEC 24 Certified European norms.
Loading Ramps
- Standart pneumatic or hydraulic system with is optionel, pneumatic ramp NPI 220 base material. To produce very strong ramps are like as alway, 1 year or 2 years later, it isnt necessary. So you can lets work, Hydraulic ramps will be make 2500 mm + 1500 mm = 4000mm , Ramp specially designed is strong. "Gürleşenyıl Treyler" quality with Trust
Platform Materials
- Semi Low Loader Trailer top of the platform is ¾ diamond-embossed and sides are "KTM (Rubber Base Material)". Over platform 8 mm is plain sheet for work machina bucket and from lower is support.
Paint
- The desired color of Acrylic paint is used as top coat over two layered epoxy primer.
King Pin
- 2"or 3,5" flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified
Sales Manager : Ahmed Barakat
Mobile : (+90) 533 169 0406
click for information and communication

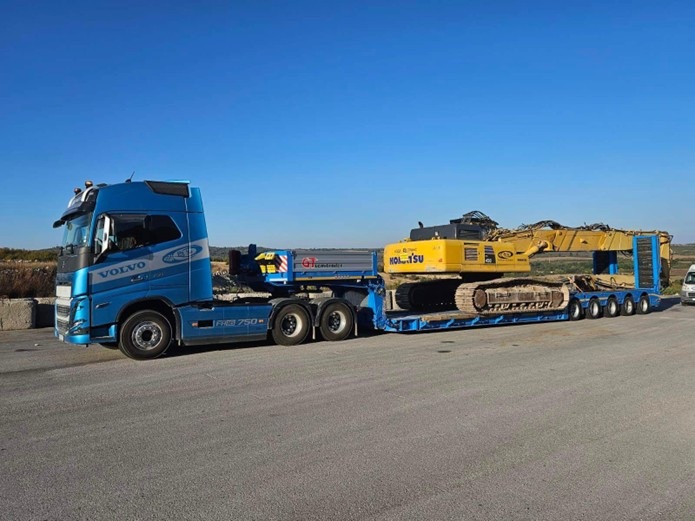

Photos
