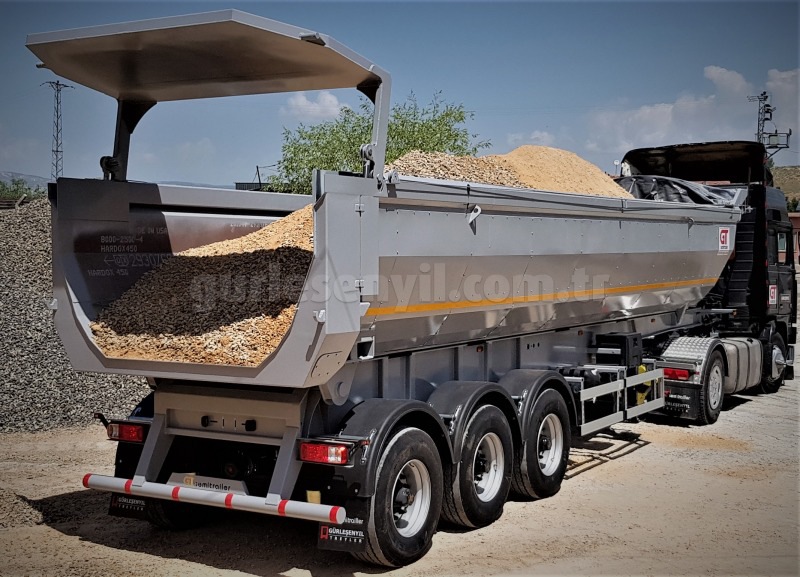

Tipper Semi Trailer

• Half pipe (Pool Type) Tipper Semi-trailers (Usually 24 m³ pool bottom for excavation transport 4 mm on the sides 4 mm HB 450 quality Hardox or equivalent wear sheet is optional. Back cover is hydraulic.)
• Box Dump semi-trailers (Option: Step Frame. This type of tipper semi-trailers are for general purpose use in the world. In terms of shape, BOX with the edge support.)
• Scrap Tipper Semi-trailers (Scrap tipper (Option: Step Frame) semi-trailer with accordion-shaped side covers made of HB 450 wear steel to be used for scrap transportation purposes.)
• Side Tipping Dump Semi Trailers (Used for unloading to the side area in various loads.)
• Half pipe, pool type ISOLATED Tipper Semi trailers ("Option: Step Frame" In cold countries, in order to prevent the cooling of the hot asphalt mixture, it is covered with a second layer of 100 mm thick insulated material on the outside of the pool. General capacity suitable for excavation is 24 m³ long type pool, pool floor is made of 4 mm sides 4 mm HB 450 quality Hardox or equivalent wear sheet. Back cover is hydraulically preferred. Used with automatic tent.)

Semi Tipper Trailer Technical Properties:

• 20 m³ - 60 m³

• (GTT3)- 3 Axle Tipper Trailer "Options: Pool Type-Half Pipe", "Box Type", "Scrap Tipper Semi Trailer"
• (GTT4)- 4 Axles Tipping Semi Trailer "Options: Pool Type-Half Pipe", "Box Type", Scrap Tipper Dump Semi Trailer"

• 6500 Kg - 8500 Kg

• 12 tons (Turkish brand) or 9 tons (German brand)

• General used: 385/65 R 22,5" or Duble 12R22,5

• Material quality standart is S355J2+N, optionel MC 700

• Base 4 mm HB 450 (Brinell Hardness Value: 450, Abrasion Resistant Steel), Side 4 mm HB 450 materials or request and are manufactured in accordance with the thickness value. Also Tipper Semitrailer addition steel 4 mm - 5 mm support is S355J2+N.

• Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, EBS, WABCO is brand.
• While tipper semi trailer is unloading, suspension automatic to fall is standard.

• 4 or 5 is lavel brand is Hidromas.

• Mechanical open or hydraulic.

• All Tender (plastic), water tank, dump stop rubber. Plastic tool cabinet and eat box, manometre (suspension boot barometric pressure shall).

Tipper Semi-Trailer Dimensions:

• 8000 mm - 10500 mm
  (Standard tipper semi trailer lenght: 8950 mm)

• 20m³- 60 m³ (optional)
  ("For Pool Type" Standard : 24 m³)

• 2550 mm (Internal width: 2340 mm)

• 1400 mm - 1570 mm
  (Standard: 1470 mm)

• 6700 mm - 10500 mm optional
  (Standard: 7600 mm)

• The used Installation materials conform to the EEC 24 Certified European norms.

• OMS, SAF or JOST brand 2x24 tones two cyclet lacklift system.

• The desired color of Acrylic paint is used as top coat over two layered epoxy.

• 2"or 3,5" flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified.
