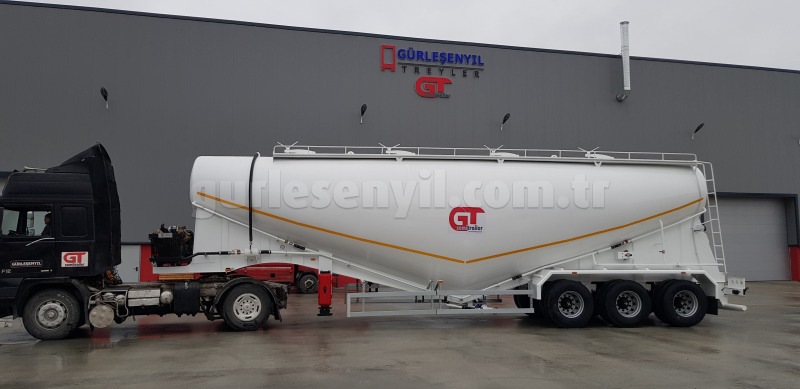

Cement Trailer

Cement Bulk Silo Trailer Technical Properties:

Cement Bulk Trailer Capacity:

• For 2 Axle 27500 Kg(Maximum laden weight)
• For 3 Axle 35500 Kg(Maximum laden weight)
• For 4 Axle 43500 Kg(Maximum laden weight)

Type:

• (GLT2-A0) 2 Axle Cement Trailer (V Type)
• (GLS3-VS) 3 Axle Cement Trailer (V Type)
• (GLT4-B5) 4 Axle Cement Trailer (V Type)
• Option: VACUUM Cement Semi-Trailer

Weight (Empty):

• 6.500 Kg - 8.700 Kg

Axle Unit:

• 12 ton (Turkish brand) - 2 x 9 ton (German brand)

Tire Unit And Dimension:

• For 2 Axle, 4 Unit 385/65 R 22,5" or 8 Unit 12R22,5
• For 3 Axle, 6 Unit 385/65 R 22,5" or 12 Unit 12R22,5
• For 4 Axle, 8 Unit 385/65 R 22,5"

Chassis:

• Cement Trailer (or vacuum cement trailer euro) has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage.

Tank Metarial:

• Cement Trailer is produced from standard 4 mm "Ereğli". It depends on (light) 3mm MC 700 (flexible and strong) it can produced. Vacuum Cement Semi-Trailer (suction and compression) vacuum cement trailer iron diameter is the 5 mm.

Brake:

• Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, EBS, WABCO is brand

Compressor and Drive System:

• Cement Trailer Compressor is 2 head or 3 head, brand is Bekomsan or Genckomp (Standart 3 head). Cement Trailer Compressor is system electirical (380 Volt AC) or Diesel engine (revision).
  Vacuum cement trailer compressor is German or Turkish. Brand is "Wolf or Bekomsan"

Manhole Covers and Filling:

• According to capacity 2 or 3 units manhole covers ( top discharge and for filling). Vacuum (suction and comression) for version 3 inc or 4 inc is dimension. Filter with piping (compressor pressure) it make.

Accessories:

• All Tender (plastic), water tank, bump stop rubber. Plastic tool cabinet and eat box, manometre (suspension boot barometric pressure shall).

V Type Cement Bulker Silo Trailer Dimensions:

Total Length:

• 8000 mm - 12000 mm

Silo Cement Trailer Capacity (Volume):

• 22 m³- 25 m³-(28 m³- 30 m³- 32m³- 35m³)* -40 m³- 45 m³- 50m³

• (*General Volume)

Width:

• 2550 mm.

Total Height:

• 3500 mm - 4000 mm

Electric Installation:

• The used Installation materials conform to the EEC 24 Certified European norms.

Lifting Foot:

• OMS or GOS brand 2x24 tones two cyclet lacklift system.

Paint:

• The desired color of Acrylic paint is used as top coat over two layered epoxy.

King Pin:

• 2" or 3,5" flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified.

New model CEMENT Silo TRAILER SALES from Manufacturer CONTACT

Sales Manager : Ahmed Barakat

Mobile : (+90) 533 169 0406

Ask For Quotation

* GT (Gurlesenyil Trailer) #Semitrailer; since 2007 we produce semi trailer. We have our brand in more than 70 countries in the world. We have exported to more than 20 countries in Europe. We provide service with our Type Approval Certificates valid in the world. Our factory is 5000 m² closed and 7000 m² open area, including a total area of 12000 m² production. "Gurlesenyil Trailer" is our manufacturer company.

* The product range of our company is very large.

* For example: LPG trailer, 2-8 Axle lowbed, low loader, flatbed, lowboy, dolly trailer, tipper, inloader (for glass transport), garbage transport, concrete mixer, container chassis, sidelifter (container self loading), oilfield tank transport, fuel tanker, dry #cement #trailer V or W (european) type, car or truck carrier, front loading lowbed, folding gooseneck lowloader, hydraulic steering and suspension low loader trailers, tripod cement transport.
